Factory Using Wood Crusher Machine 30 Ton Capacity 220KW 40CM Diamter Log Chipping

Product Categories
Shandong Dexi Machine Co., Ltd.
Contact Now

Factory Using Wood Crusher Machine 30 Ton Capacity 220KW 40CM Diamter Log Chipping

Brand Name : DEXI

Model Number : GX2113

Certification : CE ISO

Place of Origin : Shandong China

MOQ : 1 Set

Price : 56800/set

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100 sets / Month

Delivery Time : 15-20 working days

Packaging Details : plywood box, wooden box, Steel frame box, bulk into container

Key words : wood crusher machine

Application : chips producting

Capacity : 30 Ton /hour

Warranty : 3 Year except spare parts

Power type : Electric motors

Motor : 220 KW main

Color : Gray or others

Feeder size : 45 cm x 70 cm

Feeder belt : 6 Meters rubber belt

Contact Now

Factory Using Wood Crusher Machine 30 Ton Capacity 220KW 40CM Diamter Log Chipping

Product Introduction for wood crusher machine:

Drum type wood crusher machine is one kind of special equipment for producing wood chips, widely used in the raw material preparing process in the factories of flakeboard, fiberboard, papermaking and wood chips making plant. This wood crusher machine is the best equipment for factory’s laboratory preparing material, and it is the most suitalbe machine for cutting waste wood into chips as biomass fuel for boilers. It is the best equipment for paper mill also.

Features :

1. The design of this drum wood crusher machine with own strong base, avoids making the foundation. No need customer make the special cement machine base.

2. Save time. This wood crusher machine can put into produce directly which will save much time. No need extra equipment itself can working, along with auto feeding conveyor already.

3. Save money. This wood crusher machine has a large capacity and works reliable, only one or two worker can control the machine, one worker for materials loading, another control the cabinet is ok.

Mainly Parameter of wood crusher machine:

MODEL
GX216
GX218
GX2113
FEEDER SIZE(mm)
500*270
700*300
700*450
QTY OF FLY KNIVES(PCS)
2
2
3
SPEED OF KNIVES RUNNIN(R/M)
650
650
500
MAX DIAMETER FEEDER(mm)
230
300
450
CAPACITY(T/H)
7-8
12-15
15-30
MAIN POWER(kw)
55
110
220
FEEDER POWER(kw)
3-4
4-5
7.5*2
OIL PUMP POWER(kw)
1.5*1
1.5*1
3*1
WEIGHT(kg)
4070
7000
11840
MACHINE OUTER SIZE(mm)
1800*1900*1210
2200*2150*1500
3670*2517*2050
BACK CONVEYOR POWER(kw)
3
3
4

Product Photos of drum wood crusher machine:

Factory Using Wood Crusher Machine 30 Ton Capacity 220KW 40CM Diamter Log Chipping

Factory Using Wood Crusher Machine 30 Ton Capacity 220KW 40CM Diamter Log Chipping

Factory Using Wood Crusher Machine 30 Ton Capacity 220KW 40CM Diamter Log ChippingFactory Using Wood Crusher Machine 30 Ton Capacity 220KW 40CM Diamter Log Chipping

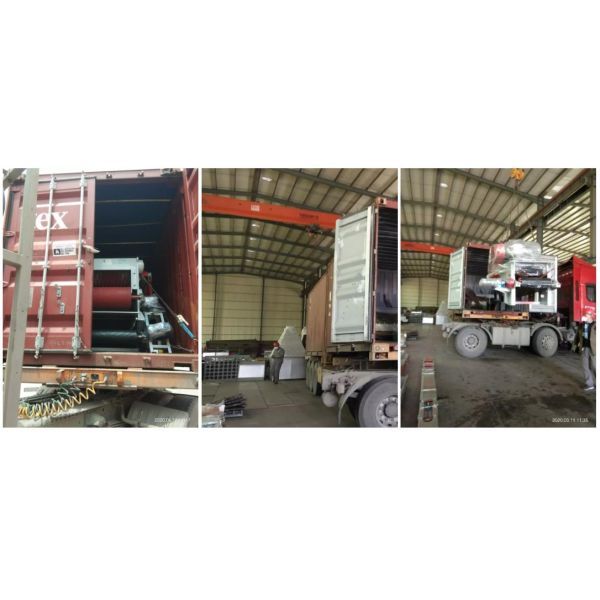

Loading drum wood chipper for customers:

Factory Using Wood Crusher Machine 30 Ton Capacity 220KW 40CM Diamter Log Chipping
